SKU: AL-PR-FB

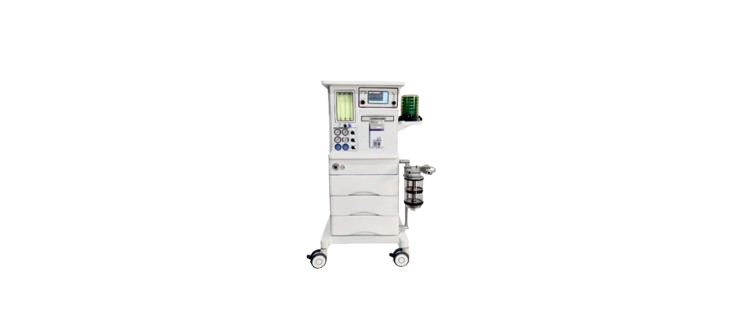

ALIS PRO Anesthesia Workstation | AL-PR-FB
The Anesthesia Workstation is one of the sophisticated Medical Equipment systems, which ensures precise anesthesia delivery and complete patient monitoring in a hospital setting, operation theatre, or healthcare facility while a surgical procedure takes place. The Anesthesia Workstation combines anesthesia delivery system, ventilator, patient monitoring, vaporizers, and additional safety measures to provide an accurate delivery of gases and ensure proper respiration of the patient during the surgery. It also comes equipped with a touch screen display, various ventilation modes, built-in alarms, and ergonomic controls. The Anesthesia Workstation is provided by the best Anesthesia Workstation Manufacturer.
Specifications
Feature
Technical Specification
Structure: Rigid structure electro-statically powder coated.
Storage Space: Three spacious drawers provided for storage of anesthesia accessories, equipment, etc.
Monitor Shelf: Large monitor shelf at eye level provided.
Cylinder Yokes: Gas-specific pin-indexed yokes for holding 2 Nos. O₂ and 1 No. N₂O cylinders of 5-litre water capacity.
Hypoxia Guard: Ensures that at least 25% oxygen is always maintained in the breathing circuit/gas mixture.
Rotameter: Three-tube rotameter for O₂, N₂O and Air (5-tube cascade type optional).
Non-Return Cum Pressure Relief Valve: Minimizes the risk of backflow and blow-off when pressure exceeds 125 cm H₂O.
Regulators: Separate regulators for each pin-indexed yoke (2 Nos. O₂ and 1 No. N₂O).
Second Stage Regulator: Provided for better safety and stability of the system.
Oxygen Flush: Oxygen flush provided for emergency oxygen (35–40 Ltr/min).
O₂ Failure Warning Device: Self-activated audio warning device to indicate O₂ pressure drop below 2.5 bar.
Nitrous Cut-Off: Ensures N₂O cut-off if oxygen supply falls below 2.5 bar.
Common Gas Outlet (CGO): Conveniently located CGO with ISO standard tapers of 22 mm & 15 mm.
Pipeline Gas Inlets: Non-interchangeable quick-connection pipeline inlets – one each for O₂, N₂O and Air.
Pressure Gauges: Large diameter, color-coded gauges fitted for better visibility and clarity (one each for pin-indexed yokes and corresponding pipeline gas inlets).
Selectatec Manifold: Twin Selectatec type manifold/block for mounting vaporizers.
Table Top: Stainless steel table top for writing and keeping medicines.
Anasthesia Ventilator: Inbuilt / Integrated anesthesia ventilator.
Close Circuit: Closed circuit / Circle absorber single canister (twin canister optional).
Changeover Unit: Easy changeover from open to closed circuit.
Ventilator – Technical Specifications
Tidal Volume: 40 – 1200 mL
Frequency: 8 – 40 bpm
I:E Ratio: 3:1 – 1:3.0
Pressure Limit: 65 cm H₂O
Airway Pressure: 5 – 100 cm H₂O
Trigger: 1 – 10 cm H₂O
Drive Mode: Pneumatically driven and microprocessor controlled
Battery Backup: 90 minutes
Alarms
Low Gas Supply
High Airway Pressure
Disconnection
Low Battery
Anesthesia Vaporizers(ISOFLURANE)
Feature - Calibrated concentration control, high safety
Dimension (L*W*H) - 90 x 185 x 197 mm Millimeter (mm)
Material - Aluminium
Display - Analog concentration scale
Advantage - Precision delivery of gaseous anesthetic agents
Weight - 7.00 Kilogram
Packing
Dimension: 1375 × 600 × 600 mm
Weight: 120 kg (approx.)
- Integrated anesthesia workstation with built-in ventilator for smooth and reliable operation
- Advanced safety system with oxygen failure warning, hypoxia protection, and nitrous cut-off
- User-friendly design with clear gas flow indicators, easy controls, and emergency oxygen flush
- Durable, stable construction with stainless steel work surface and ample storage drawers
- Flexible open-to-closed circuit changeover suitable for a wide range of surgical procedures
Technical Specification
Structure: Rigid structure electro-statically powder coated.
Storage Space: Three spacious drawers provided for storage of anesthesia accessories, equipment, etc.
Monitor Shelf: Large monitor shelf at eye level provided.
Cylinder Yokes: Gas-specific pin-indexed yokes for holding 2 Nos. O₂ and 1 No. N₂O cylinders of 5-litre water capacity.
Hypoxia Guard: Ensures that at least 25% oxygen is always maintained in the breathing circuit/gas mixture.
Rotameter: Three-tube rotameter for O₂, N₂O and Air (5-tube cascade type optional).
Non-Return Cum Pressure Relief Valve: Minimizes the risk of backflow and blow-off when pressure exceeds 125 cm H₂O.
Regulators: Separate regulators for each pin-indexed yoke (2 Nos. O₂ and 1 No. N₂O).
Second Stage Regulator: Provided for better safety and stability of the system.
Oxygen Flush: Oxygen flush provided for emergency oxygen (35–40 Ltr/min).
O₂ Failure Warning Device: Self-activated audio warning device to indicate O₂ pressure drop below 2.5 bar.
Nitrous Cut-Off: Ensures N₂O cut-off if oxygen supply falls below 2.5 bar.
Common Gas Outlet (CGO): Conveniently located CGO with ISO standard tapers of 22 mm & 15 mm.
Pipeline Gas Inlets: Non-interchangeable quick-connection pipeline inlets – one each for O₂, N₂O and Air.
Pressure Gauges: Large diameter, color-coded gauges fitted for better visibility and clarity (one each for pin-indexed yokes and corresponding pipeline gas inlets).
Selectatec Manifold: Twin Selectatec type manifold/block for mounting vaporizers.
Table Top: Stainless steel table top for writing and keeping medicines.
Anasthesia Ventilator: Inbuilt / Integrated anesthesia ventilator.
Close Circuit: Closed circuit / Circle absorber single canister (twin canister optional).
Changeover Unit: Easy changeover from open to closed circuit.
Ventilator – Technical Specifications
Tidal Volume: 40 – 1200 mL
Frequency: 8 – 40 bpm
I:E Ratio: 3:1 – 1:3.0
Pressure Limit: 65 cm H₂O
Airway Pressure: 5 – 100 cm H₂O
Trigger: 1 – 10 cm H₂O
Drive Mode: Pneumatically driven and microprocessor controlled
Battery Backup: 90 minutes
Alarms
Low Gas Supply
High Airway Pressure
Disconnection
Low Battery
Anesthesia Vaporizers(ISOFLURANE)
Feature - Calibrated concentration control, high safety
Dimension (L*W*H) - 90 x 185 x 197 mm Millimeter (mm)
Material - Aluminium
Display - Analog concentration scale
Advantage - Precision delivery of gaseous anesthetic agents
Weight - 7.00 Kilogram
Packing
Dimension: 1375 × 600 × 600 mm
Weight: 120 kg (approx.)
