SKU: ERBA CHEM 5X

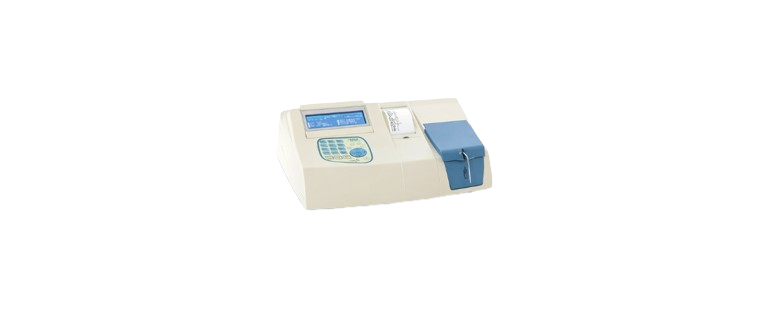

ERBA Chemistry Analyzer | ERBA CHEM 5X
Chemistry Analyzer is a sophisticated Medical Equipment instrument which is capable of performing rapid, precise, and automatic biochemical testing in hospitals, diagnostic laboratories, pathology laboratories, clinics, and other healthcare institutions. Chemistry Analyzer can perform rapid, accurate, and automated analysis of glucose level in the blood, liver function tests, kidney function tests, lipid test, electrolyte balance, and other chemical analyses in the clinical setting. The instrument is equipped with automatic sample handling, high-speed operation, touchscreen interface, and advanced quality control features. A reputable Chemistry Analyzer Manufacturer provides top-quality laboratory equipment according to international health care standards.
Specifications
Technical Specifications
Reaction Cuvette - Flow Cell
Water Consumption/Hr - 8L/hr
Reagent Consumption/Test - 20 o C
Frequency - 50 Hz
Wattage - 18 W
Dimensions (Approximate)
- 222 open user-defined test programs
- 9 Assay modes
- 1 Point Linear
- 2 Point Linear
- 1 Point Non Linear
- 2 Point Non-linear
- Rate A Linear
- Rate A Non-Linear
- 1 Point Sample Blank Linear
- 1-Point Sample Blank Non-Linear
- Absorbance
- Mono & Bichromatic measurement
- Photometric range from 0 to 3.0 OD
- Photometric resolution up to 0.0001
- Automatic zero setting
- Static Photometer: 340-630 n.m.
- 340, 405, 505, 546, 578, 630 n.m. + 2 Optional positions
- Multi-Point calibration with graphical display
- Levy-Jennings graph for quality control
- 5000 Test patient results storage
- Peristaltic pump aspiration system with calibration facility
- Flow cell volume-33 µl
- 10 mm external glass / Polystyrene
- Aspiration volume from 100 to 2997 µl
- Temperature control at 20° to 40° in step of 1°C
- Repeat measurement by read key
- Collated report date wise, ID wise (Alphanumeric)
- Inbuilt Thermal Printer
- Direct Printer Connectivity through USB Port
- USB Connectivity to PC
- SEMI AUTOMATIC
Reaction Cuvette - Flow Cell
Water Consumption/Hr - 8L/hr
Reagent Consumption/Test - 20 o C
Frequency - 50 Hz
Wattage - 18 W
Dimensions (Approximate)
- Width: 625 mm
- Depth: 450 mm
- Height: 424 mm
Weight
- 10 kg
