SKU: AL-O11

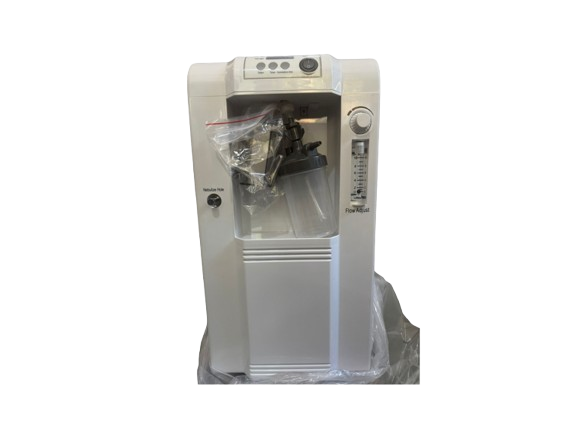

Oxygen Concentrator 10 Liter | AL-O11
Oxygen Concentrator is one of the highly developed Medical Equipment products which is specially engineered to provide uninterrupted high purity oxygen supply to patients suffering from respiratory ailments, low oxygen level in the blood, and chronic lung diseases. It is widely used in hospitals, clinics, ICUs, emergency units, and even at home for medical purposes. Oxygen Concentrator is designed to extract oxygen from the air and hence, there is no need for cylinders to be carried. It comes with adjustable flow options, easy to use digital interface, noiseless performance, energy efficient operation, and advanced alarms for safety purposes. A leading Oxygen Concentrator Manufacturer provides high quality oxygen therapy devices.
Specifications
Feature
- High-efficiency PSA (Pressure Swing Adsorption) oxygen generation technology
- Adjustable oxygen flow 1–10 L/min suitable for hospital and home care
- Delivers medical-grade oxygen purity up to 93% ±3%
- LED display for monitoring oxygen flow and device status
- Low noise operation for patient comfort
- Automatic alarm system for low oxygen concentration and device failure
- Reliable lithium molecular sieve system for stable oxygen production
- Continuous operation designed for long-term oxygen therapy
- Compact and durable design suitable for clinical environments
Technical Specifications
- Working Principle: PSA (Pressure Swing Adsorption)
- Electrical Safety: B Type Class II Equipment
- Oxygen Flow Rate: 1 – 10 L/min adjustable
- Oxygen Concentration: ≥93% ±3%
- Oxygen Outlet Pressure: 0.02 – 0.07 MPa
- Voltage: 220V AC, 50 Hz
- Power Consumption: 700 W
- Molecular Sieve: Lithium based
- Noise Level: ≤54 dB(A)
- Display: LED
- Alarm System: Oxygen concentration alarm, device failure alarm
- Working Temperature: 5°C – 40°C
- Working Humidity: ≤80% RH
- Storage Temperature: −10°C – 40°C
- Storage Humidity: ≤80% RH
Dimensions (Approx.)
- Size: 470 × 280 × 550 mm
Weight
- Net Weight: 27 kg
- Working Principle: PSA (Pressure Swing Adsorption)
