![Automated External Defibrillator [AED] | AL-AED1](/uploads/products/c643b73f35971d55e059.png)
SKU: AL-AED1

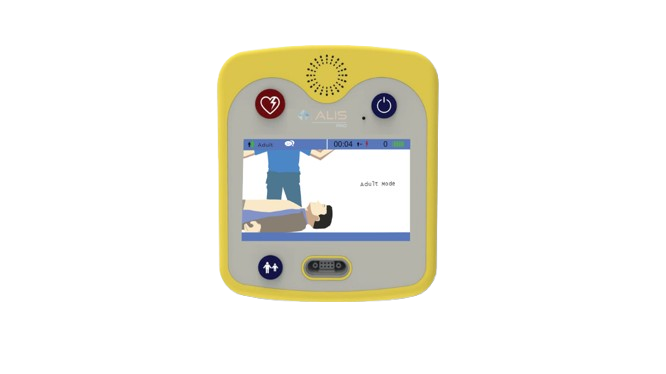

Automated External Defibrillator [AED] | AL-AED1
Automated External Defibrillator (AED) is a very important Medical Device intended to offer instant medical assistance in the case of sudden cardiac arrest by providing an instant electric shock to the heart to bring it back to a normal beat rate. It is extensively used in hospitals, ambulances, clinics, airports, schools, offices, healthcare centers, etc. The main characteristics of the Automated External Defibrillator include intelligent voice prompts, automatic heart rhythm detection, easy-to-use interface, and rechargeable battery. A dependable Automated External Defibrillator Manufacturer offers excellent cardiac emergency equipment to meet international healthcare requirements.
Specifications
Feature
Packing:
- Output: Biphasic Truncated Exponential
- Energy Sequence: 150 J, 150 J, 200 J
- Charge Time:
- 8 seconds to 150 J
- 10 seconds to 200 J (new battery)
- Analysis Time: 9 seconds
- Audible Prompts: 22 audible prompts
- Visual Prompts: LED prompts with automatic self-test
- Controls: Two buttons – On/Off and Shock
- Output Energy Accuracy: ±15% into any impedance from 25 Ω to 175 Ω
- Maximum Voltage: 1200 V ±50 V
- Output disabled when patient impedance is outside limits: 20 Ω ~ 200 Ω
- Maximum time from initiation of rhythm analysis to readiness for discharge (new battery): Less than 20 seconds
- Maximum time from initiation of rhythm analysis to readiness for discharge after 6 shocks: Less than 25 seconds
- Maximum time from initial power ON to readiness for discharge: Less than 30 seconds
- Part No.: CR123A × 4 × 2
- Non-rechargeable Battery Capacity: 2.8 Ah
- Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
- Shelf Life(25*C+15C) : 7 Years standby (after installation)
- Operating Temperature : 0 C to 40 C
- Operating Humidity : Relative humidity between 30% and 95% (non-condensing)
- Storage Temperature : -20 C to 55 C
- Storage Humidity : upto 93% (non-condensing)
Packing:
- Dimensions: 280×209×80mm
- Weight - 2.5kg
