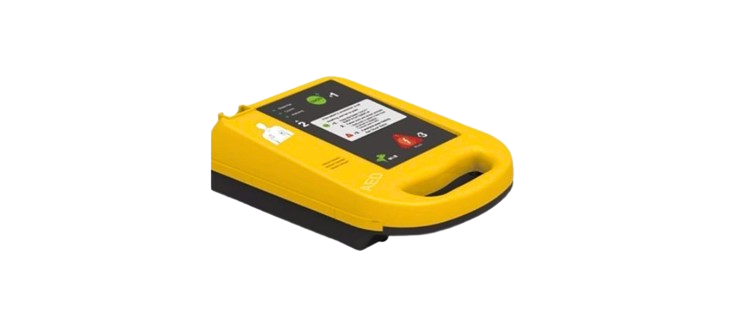

Automated External Defibrillator [AED] | AL-AED7000
SKU: AL-AED7000

Automated External Defibrillator [AED] | AL-AED7000

Automated External Defibrillator (AED) is a lifesaving Medical Equipment product meant to ensure timely and proper intervention when there is a sudden cardiac arrest due to providing an electric shock to the body in order to return its normal rhythm. The Automated External Defibrillator is a widely adopted device in hospitals, ambulances, clinics, airports, schools, offices, healthcare centers, and other places, thanks to its voice guidance system, heart rhythm analysis, easy-to-use interface, and rechargeable battery that allows quick and efficient reaction in case of emergencies. There is a reliable Automated External Defibrillator Manufacturer that offers quality products.

Specifications

Feature
  • Output: Biphasic truncated exponential
  • Energy Sequence: 150 J, 150 J, 200 J
  • Charge Time:
  • 8 seconds to 150 J
  • 10 seconds to 200 J (new battery)
  • Analysis Time: 9 seconds
  • Maximum Time from Rhythm Analysis to Readiness for Discharge:
  • Less than 20 seconds (with new battery)
  • Less than 25 seconds (after 6 shocks)
  • Maximum Time from Power ON to Readiness for Discharge: Less than 25 seconds
  • Audible Prompts: 22 audible prompts
  • Visual Prompts: LED prompts
  • Controls: Two buttons – On/Off, Shock
  • Output Energy Accuracy: ±15% into any impedance from 25 Ω to 175 Ω
  • Maximum Voltage: 1200 V ±50 V
  • Output Disabled When Patient Impedance Is Outside Limits: 20 Ω to 200 Ω
  • Part No.: CR123A × 4 × 2
  • Non-Rechargeable Capacity: 2.8 Ah
  • Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
  • Shelf Life (25°C ±15°C): 5 years standby (after installation)
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: Relative humidity between 30% and 95% (non-condensing)
  • Storage Temperature (Without Battery): −20°C to 55°C
  • Storage Humidity (Without Battery): Up to 93% (non-condensing)
    Packing:
    • Dimensions: 303 × 216 × 89 mm
    • Weight - 2.0 kg
