SKU: AL-BD10

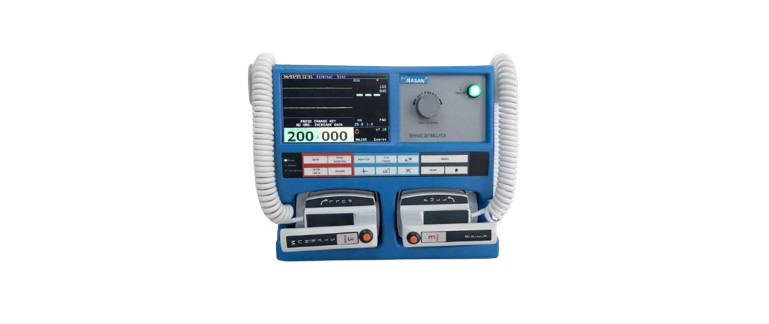

Biphasic Defibrillator [Blue] | AL-BD10
Biphasic Defibrillator [Blue] is an innovative Medical Equipment solution that enables fast and efficient treatment for cases of sudden cardiac arrest and dangerous heart rhythm disorders. Designed for usage in hospitals, ambulances, ICUs, emergency departments, and other health care establishments, the Biphasic Defibrillator [Blue] provides controlled biphasic defibrillation with ECG analysis, synchronized cardioversion, full color display, automatic energy choice, and a rechargeable battery. This robust product will provide excellent clinical results. A reputable Biphasic Defibrillator [Blue] Manufacturer produces top-class cardiac emergency equipment in accordance with the international healthcare standards.
Specifications
Feature
Paper Type: Thermal paper 50/55 mm width, 20 meters length for 2" printer
Event Printing: Prints 5 seconds pre & post ECG with Date, Time, Energy and Mode, Shock Status
ECG in Defib Mode: Prints last 10 sec ECG through paddle & Time, Date, Mode, Lead name, Gain, Sweep speed
ECG in Monitor Mode: Prints Annotations in Monitor Mode
Manual Defib Check Mode: Prints the status of shock, Energy, Date and Time
Packing:
ECG
AED Mode
- Display: 7" Colour TFT
- Display Area: 150 mm × 90 mm
- Unit ON–OFF: By front panel keyboard, Encoder
- Operation: User adjustable high & low limit, Audible and visual alarming
- Alarm: 24 hrs Graphical and Tabular trend of ECG, SpO₂, NIBP, EtCO₂
- Charge Discharge Control: Charge and Shock button on front panel and paddles
Defib (External Paddles)
- Operating Mode: Manual
- Waveform: Biphasic Truncated Exponential
- Energy: 2 to 200 Joules in 12 steps selection
- Energy Display: Display selected and charged/delivered energy
- Synchronous Cardio Version: Energy delivery begins within 60 ms of the QRS Peak
- Charging Time: 6 seconds on Mains
- Paddle Assembly: External paddle assembly with coil retractable high voltage cable, Adults & Pediatric paddle integrated to same handle
- Check Mode: Manual check mode
- Patient Impedance Range: 35 ohm to 250 ohm
- Shock Delivery: Through paddles or pads
Packing:
- Dimensions: H 280 × W 330 × D 220 mm (Max)
- Weight - Approx. 6.5 Kgs
ECG
- Frequency Response: 0.5 Hz to 35 Hz
- Patient Isolation: Optical isolation
- Lead Selection: Lead I, II and III
- Gain Setting: 0.5, 1.0 and 2.0
- CMRR: > 90 dB
- Sweep Speed: 12.5, 25, 50 mm/sec
- Digital Filter: Digital signal processing for good quality ECG
- ECG Traces Viewing: 4 seconds ECG traces can be viewed
- Operating Temp: -5°C to +50°C
- Humidity: Up to 95% non-condensing
AED Mode
- Wave Form: Biphasic truncated exponential
- AED Shock Series: Energy level 200 J
- Charge Command: Automatic after identifying shockable rhythm
- Shock Command: Front panel button, shock
- Controls: Analyze
- Defibrillation Electrode: Self adhesive adult pads
- Voice and Text Prompts: Extensive text and audible messages to guide user
