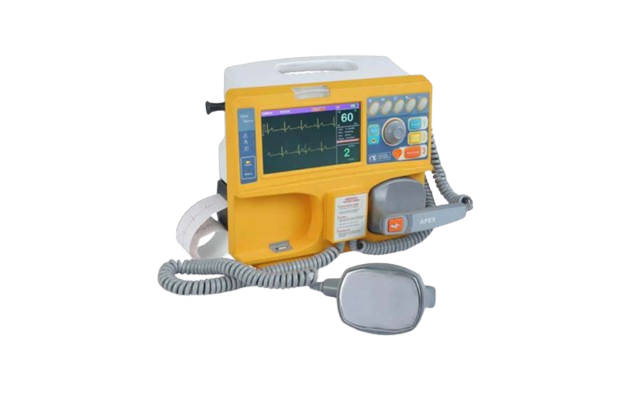

Biphasic Defibrillator [Yellow] | AL-BD5
SKU: AL-BD5

Biphasic Defibrillator [Yellow] | AL-BD5

Biphasic Defibrillator [Yellow] is an advanced Medical Equipment device designed to deliver controlled biphasic electrical shocks for the rapid treatment of sudden cardiac arrest and life-threatening cardiac arrhythmias. Ideal for hospitals, ambulances, emergency departments, ICUs, and healthcare facilities, the Biphasic Defibrillator [Yellow] features ECG monitoring, synchronized cardioversion, a high-resolution display, intelligent energy selection, and a rechargeable battery for dependable emergency care. Its compact, durable design ensures reliable performance in critical situations. A trusted Biphasic Defibrillator [Yellow] Manufacturer supplies high-quality cardiac Critical Care Equipment that meets international healthcare standards for safe and effective resuscitation.

Specifications

Feature
  • Channel - 2 Channel
  • Electrode - 3 / 5 Leads
  • ECG Acquisition - Patient Cable and Paddles
  • Display - 2 Waveforms with HR and pulses selected
  • Lead - Lead I, II, III, aVR, aVL, aVF, V
  • Gain Selection - 5 / 10 / 15 / 20 mm/mV
  • Sweep Speed - 12.5, 25 or 50 mm/sec
  • Heart Rate Range - 30–240 bpm
  • Heart Rate Accuracy ±2 bpm
  • Frequency Response - 0.05 to 40 Hz
  • CMRR - 100 dB
  • Input Impedance - 100 M Ohms
  • High Resolution thermal array recorder
  • Printing Speed - 25 mm/sec
  • Printer Paper Size - 57 mm × 20 Mtr.
  • Details on Print
  • HR, ECG w/f along with energy delivery,
  • Date, Time, Patient Details
  • (ID, name, age, sex), Joules selected,
  • Sweep speed and Gain
  • Color TFT display
  • Size - 7" Diagonally
  • Resolution - 800 × 480 Pixels
  • Power Input - AC 230V, 50 Hz
  • Battery Rating - 14.8 V / 4400 mAh, Li-Polymer
  • Charging Time - 8 Hours
  • Operating Time - 40–50 shocks (270 joules) or more than 3 hours monitoring without printing
  • Working Temperature and Humidity 0–40 deg. cel. & up to 90% non-condensing


Packing:
  • Dimensions: 403 (L) × 152 (H) × 324 (W) mm
  • Weight - 5.4 Kg
