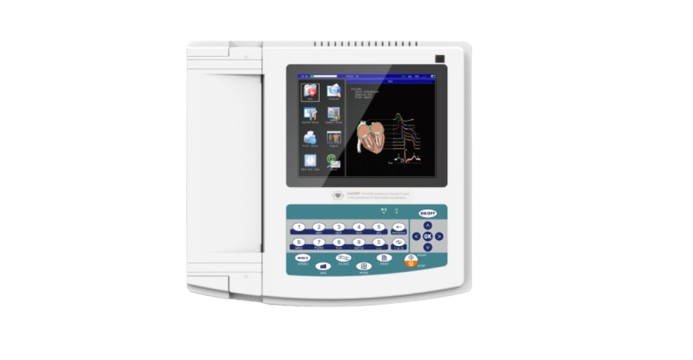

12 Channel ECG Machine | CMS-1200G
SKU: CMS-1200G

12 Channel ECG Machine | CMS-1200G

6 Channel ECG Machine is a highly developed Medical Equipment technology used for proper recording and analysis of the electrical activity of the heart in hospitals, clinics, cardiac care units, and diagnostic centers. 6 Channel ECG Machine records six ECG waveforms together to allow for quick and accurate heart evaluation for heart disease detection. 6 Channel ECG Machine comes with a high-quality monitor screen, integrated thermal printer, automatic ECG analysis, digital storage system, and easy-to-use control panel, ensuring high efficiency and reliability. A reputable 6 Channel ECG Machine Manufacturer provides state-of-the-art diagnostic machines according to international healthcare standards.

Specifications

Feature
  • Input Way: Floating and defibrillation protection
  • Lead: Standard 12 leads
  • Patient Leak Current: <10 μA
  • Input Impedance: ≥50 MΩ
  • Frequency Response: 0.05 Hz ~ 150 Hz (−3 dB ~ +0.4 dB)
  • Time Constant: ≥3.2 s
  • CMRR: 60 dB, >100 dB (adding filter)
  • EMG Interference Filter: 25 Hz / 35 Hz (−3 dB)
  • Recording Way: Thermal printing system
  • Sensitivity Selections:
  • 2.5, 5, 10, 20, 40 mm/mV, error ±5%
  • Standard sensitivity: 10 mm/mV ±0.2 mm/mV
  • Auto Record: Record setup according to auto record format and mode, automatically changing leads, measuring, and analysing
  • Rhythm Record: Record setup according to rhythm record format and mode, automatically measuring and analysing
  • Manual Record: Record setup according to manual record format, manually changing leads
  • Measurement Parameters:
  • HR, P-R interval, P duration, QRS duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5) + S(V1)
  • Product Safety Type: Class I CF applied part; defibrillation and pacing protection circuit included
  • Enduring Polarization Voltage: ±500 mV
  • Noise Level: ≤15 μVp-p
  • Power Supply / Frequency:
  • AC: 100–240 V, 50/60 Hz
  • DC: 14.8 V, 3700 mAh rechargeable lithium battery
    Packing:
    • Dimensions: 334 mm (L) × 320 mm (W) × 85 mm (H)
    • Weight - 4.0 kg
