SKU: CMS-300G

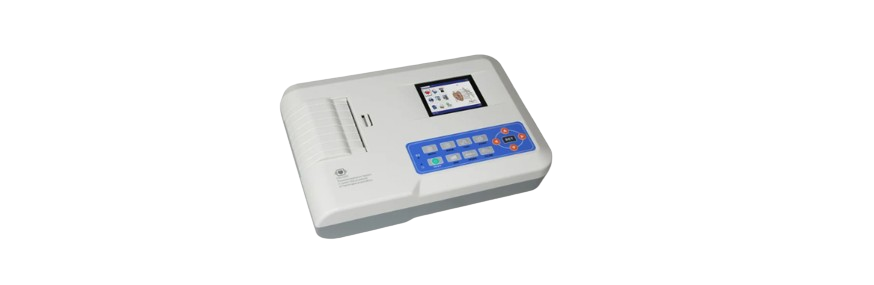

3 Channel ECG Machine | CMS-300G
3 Channel ECG Machine is a small yet robust Medical Equipment product used for precise monitoring of the electrical activity of the heart. The 3 Channel ECG Machine records three separate ECG waves at the same time, which allows one to make an assessment of the state of heart quickly. Being outfitted with a high-quality monitor, internal printer, automatic ECG analyzing program, storage of digital data, and intuitive user interface, it provides rapid and reliable diagnostic information. A reputed 3 Channel ECG Machine Manufacturer offers highly efficient cardiogram diagnostic solutions according to international healthcare standards.
Specifications
Feature
Packing:
- Safety: Type Class I, Type CF applied part, which has defibrillation-proof
- Applied part
- Lead Standard 12 leads
- Input way: Floating and defibrillation protection
- Patient leak current <10µ A
- Sampling rate 1000Hz
- A/D conversion 12bit
- Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
- CMRR >60dB, >100dB (Add filter)
- Enduring polarization voltage ± 300mV
- Noise level ≤ 15µ Vp-p
- EMG interference filter 25/35Hz (-3dB)
- AC filter 50/60Hz (≥ 20dB)
- Recording way Thermal printing system(32spots/mm)
- Recording paper 80mm(W)× 20m(L)
- Sensitivity 5mm/mV 10mm/mV 20mm/mV 40mm/mV Auto
- Auto-record: 25mm/s, 50mm/s
- Rhythm record: 25mm/s, 50mm/s
- Manual-record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
Packing:
- Dimensions: 31.5 x 21.5 x 7.7 cm
- Weight - 2.0 kg
