SKU: CMS-600G

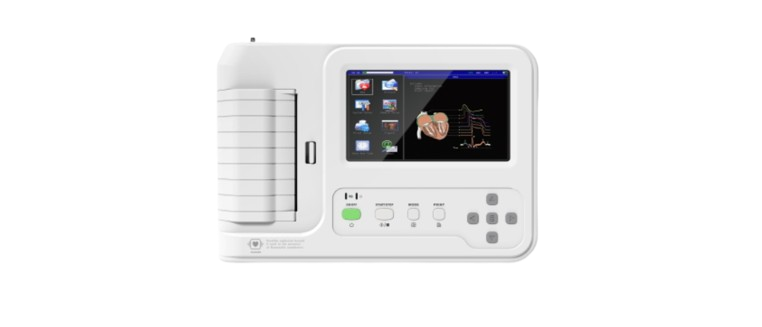

6 Channel ECG Machine | CMS-600G
6 Channel ECG Machine is a highly developed Medical Equipment technology used for proper recording and analysis of the electrical activity of the heart in hospitals, clinics, cardiac care units, and diagnostic centers. 6 Channel ECG Machine records six ECG waveforms together to allow for quick and accurate heart evaluation for heart disease detection. 6 Channel ECG Machine comes with a high-quality monitor screen, integrated thermal printer, automatic ECG analysis, digital storage system, and easy-to-use control panel, ensuring high efficiency and reliability. A reputable 6 Channel ECG Machine Manufacturer provides state-of-the-art diagnostic machines according to international healthcare standards.
Specifications
Feature
Packing:
- 7 inch TFT touch screen with LED backlight
- Digital isolation technology and signal processing solution with digital filters
- Built-in rechargeable lithium battery with wide thermal printing system
- Memory: built-in memory or mini SD memory card, stores more than 1000 records
- Auto-measurement, auto-analysis, and auto-interpretation
- Lead: Standard 12 leads
- Patient Leak Current: <10 μA
- Input Impedance: ≥50 MΩ
- Frequency Response: 0.05 ~ 150 Hz (−3 dB)
- Time Constant: 3.2 s
- CMRR: 100 dB
- Sensitivity Choice: 5 mm/mV, 10 mm/mV, 20 mm/mV
- Measurement Parameters:
- HR, P-R interval, P duration,
- QRS duration, Q-T interval, Q-Tc,
- P axis, QRS axis, T axis,
- R(V5), S(V1), R(V5) + S(V1)
- Product Safety Type: Class I, CF, defibrillation pacing protection
- Enduring Polarization Voltage: ±300 mV
- Noise Level: <15 μVp-p
Packing:
- Dimensions: 130 mm (L) × 74 mm (W) × 25 mm (H)
- Weight - 2.3 kg
