SKU: AL-IP11

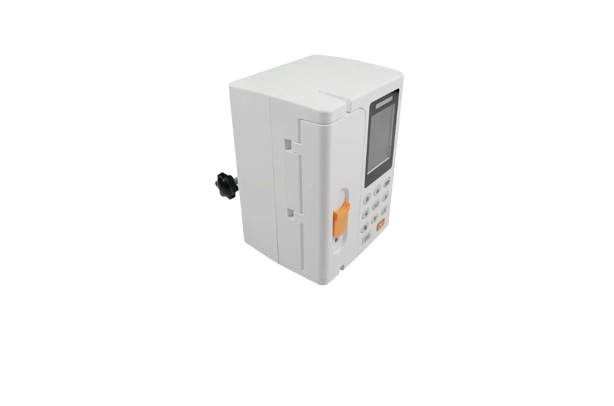

Infusion Pump | AL-IP11
Infusion Pump is a state-of-the-art Medical Equipment instrument specifically engineered for the accurate and continuous delivery of fluids, drugs, nutritional fluids, and blood products in hospitals, ICUs, operation theaters, emergency units, and other healthcare institutions. The Infusion Pump provides programmable flow rate, smart alarm system, accurate flow rate control, and simple user-friendly interface to ensure safe and effective administration of the treatment. With its small and robust build, the Infusion Pump ensures continuous operation in critical conditions. An experienced Infusion Pump Manufacturer offers top-of-the-range infusion solutions which conform to international healthcare requirements for precise fluid management and safer clinical treatment.
Specifications
Feature
Performance
Compatible Infusion Sets : Various brand infusion sets, disposable (20 drops/mL); Infusion set diameter: 3.4–4.5 mm
Infusion Modes: Time mode, Rate mode, Drop mode
Infusion Rate Setting Range： 0.10 mL/h to 1200 mL/h (adjustable in 0.1 mL/h increments) Pre-set Volume
Priming Rate: 1200 mL/h
Purge Rate: 1200 mL/h
KVO Rate: 0.5 mL/h, 1 mL/h, 2 mL/h, 3 mL/h, 4 mL/h, 5 mL/h, or OFF
Occlusion Pressure: 60 kPa, 70 kPa, 80 kPa, 90 kPa, 100 kPa, 110 kPa, 120 kPa, 130 kPa
Bubble Detection: Minimum detectable bubble volume: 50 µL, 100 µL, 250 µL, 500 µL, 800 µL
Power Supply: AC: 100–240 V, 50/60 Hz; DC: 7.4 V (external)
Battery: Built-in rechargeable lithium-ion battery (1800 mAh)
Battery Operating Time: 5 hours (at 100 mL/h infusion rate with a new battery)
Packing:
- 2.8-inch color screen
- Compact and lightweight design for easy portability and installation
- User-friendly interface with audible and visual alarm systems
- Built-in lithium battery providing approximately 5 hours of operation when fully charged
- Multiple infusion modes to meet various infusion needs
- Advanced pressure detection technology
Performance
Compatible Infusion Sets : Various brand infusion sets, disposable (20 drops/mL); Infusion set diameter: 3.4–4.5 mm
Infusion Modes: Time mode, Rate mode, Drop mode
Infusion Rate Setting Range： 0.10 mL/h to 1200 mL/h (adjustable in 0.1 mL/h increments) Pre-set Volume
- Range:0.1–10000 mL (adjustable in 0.1 mL increments) Infusion Time Setting Range:00:00:01–99:59:59 (adjustable in 1-second increments)
Priming Rate: 1200 mL/h
Purge Rate: 1200 mL/h
KVO Rate: 0.5 mL/h, 1 mL/h, 2 mL/h, 3 mL/h, 4 mL/h, 5 mL/h, or OFF
Occlusion Pressure: 60 kPa, 70 kPa, 80 kPa, 90 kPa, 100 kPa, 110 kPa, 120 kPa, 130 kPa
Bubble Detection: Minimum detectable bubble volume: 50 µL, 100 µL, 250 µL, 500 µL, 800 µL
Power Supply: AC: 100–240 V, 50/60 Hz; DC: 7.4 V (external)
Battery: Built-in rechargeable lithium-ion battery (1800 mAh)
Battery Operating Time: 5 hours (at 100 mL/h infusion rate with a new battery)
Packing:
- Dimensions: 128×112.5×183.5 mm
- Weight - 2 kg
