SKU: BYZ-810

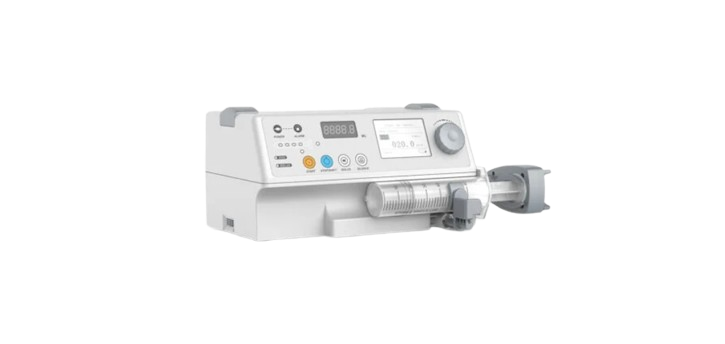

Syringe Pump | BYZ-810
Syringe Pump is an advanced medical equipment instrument made to dispense medications, IV fluids, and other essential medicines at highly accurate rates. It is commonly used in hospitals,Intensive Care Units, Neonatal Intensive Care Unit, operating rooms, and emergency departments and has features such as programmed infusion, sophisticated alarm, high-precision dose dispensation, and a user-friendly digital display for the safety and efficiency of patients' treatment. The compact and reliable construction of the syringe pump guarantees consistent drug delivery throughout the whole process of treatment. A reliable Syringe Pump Manufacturer produces high-quality infusion devices that satisfy international healthcare requirements.
Specifications
Feature
Packaging
Performance
Unique Human Voice Alarm system
Bolus Rate:
- 0.1ml ~ 9999.9ml (0.1ml step)
Total Injection Volume - 0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump
KVO rate: 1ml/h
Alarm:
- HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
- Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
- Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
- Preset solution volume to greatly reduce the workload of nurses;
- Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
- Three levels of occlusion: high, medium and low;
- Purge and Bolus function;
- KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is
- 1-5ml/h(0.1ml/h step);
- Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
- Power Source: AC100—240V, 50/60Hz; Internal Battery, DC12V car charge;
- One-key operation makes setup easy and simple;
- Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
- Automatically record the settings of last injection
Packaging
- Dimension: 280mm (L), 210mm(W),130mm(H)
- Weight: 2.2kg (net weight)
Performance
Unique Human Voice Alarm system
- The device triggered the human voice prompt and stop
- injection automatically when there is any malfunction,
- making the infusion process safer and more reliable.
- 50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step)
- 1,000ml/h ~ 1,500ml/h (1ml/h step)
- 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step)
- 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step)
- 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Bolus Rate:
- 50/60ml Syringe: 1,200ml/h
- 30 ml Syringe: 720ml/h
- 20 ml Syringe: 480ml/h
- 10 ml Syringe: 240ml/h
Total Injection Volume - 0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump
- High: 800mmHg +/-200mmHg (106.7kPa +/-26.7kPa)
- Medium: 50/600mmHg +/-100mmHg (66.7kPa +/-13.3kPa)
- Low: 300mmHg +/-100mmHg (40.7kPa +/-13.3kPa )
KVO rate: 1ml/h
Alarm:
- Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
