SKU: SHANGRILA 510S

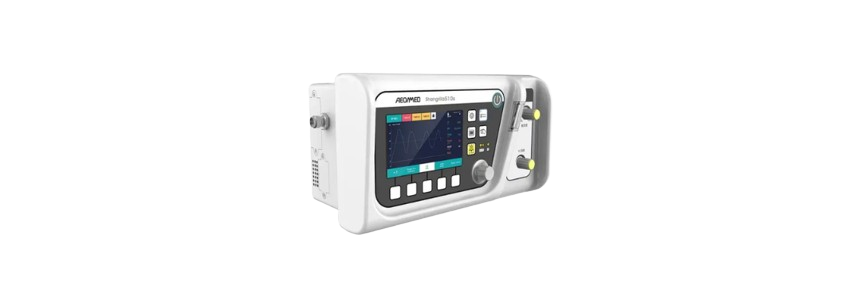

AEONMED Portable Ventilator | SHANGRILA 510S
The Portable Ventilator is a cutting-edge Medical Equipment product that can help provide accurate respiratory assistance to patients in hospitals, ambulances, ERs, ICU, transport and even at home. This Portable Ventilator offers accurate oxygen supply and various ventilation methods for treating adults, children, and neonatal patients suffering from different respiratory ailments. Being small, lightweight, equipped with high-definition touchscreen screen, rechargeable battery, and safety alarms, it guarantees reliable operation in the process of critical care and transportation of the patients. The reputable Portable Ventilator Manufacturer produces high-quality respiratory care equipment meeting international healthcare standards.
Specifications
Feature
Technical Specification
Ventilation Modes
A/C-V with sigh
A/C-P
SIMV-V
SIMV-P
Parameters
Tidal Volume: 0–2000 ml
Respiration Rate:
1–120 bpm (A/C mode)
1–40 bpm (SIMV mode)
I:E Ratio: 1:10–4:1
FiO₂: 40%–100%
Trigger Sensitivity:
Pressure trigger: −20 ~ 0 cmH₂O
Flow Trigger: 2–30 L/min
PEEP: 0–30 cmH₂O
Monitoring
Pressure Value: Ppeak, PEEP
Volume / Flow Value: Vt, MV
Time Value: ftotal
Real Time Curves: Pressure-Time, Flow-Time
Alarms
Paw high
Paw low
MV high
Gas supply down
No VT
FiO₂ high
FiO₂ low
Apnea
Continuous pressure high / CP high
EX power lost
O₂ deficiency
Battery low
Technical Data
Supply Gas: O₂, 0.25–0.6 MPa
Power Supply: AC100–240 V, 50 Hz / 60 Hz, ≤65 VA
Screen Size: 5″ LCD Screen
Maximum Security Pressure: ≤8 kPa
Compliance: ≤4 ml / 100 Pa
Battery Operating Time: Approx. 4.5 h
- Suitable for adult, pediatric, and critical care applications
- Supports both volume-controlled and pressure-controlled ventilation
- Multiple ventilation modes for flexible patient management
- Advanced assist/control and SIMV support
- Built-in sigh function to help improve lung expansion
Technical Specification
Ventilation Modes
A/C-V with sigh
A/C-P
SIMV-V
SIMV-P
Parameters
Tidal Volume: 0–2000 ml
Respiration Rate:
1–120 bpm (A/C mode)
1–40 bpm (SIMV mode)
I:E Ratio: 1:10–4:1
FiO₂: 40%–100%
Trigger Sensitivity:
Pressure trigger: −20 ~ 0 cmH₂O
Flow Trigger: 2–30 L/min
PEEP: 0–30 cmH₂O
Monitoring
Pressure Value: Ppeak, PEEP
Volume / Flow Value: Vt, MV
Time Value: ftotal
Real Time Curves: Pressure-Time, Flow-Time
Alarms
Paw high
Paw low
MV high
Gas supply down
No VT
FiO₂ high
FiO₂ low
Apnea
Continuous pressure high / CP high
EX power lost
O₂ deficiency
Battery low
Technical Data
Supply Gas: O₂, 0.25–0.6 MPa
Power Supply: AC100–240 V, 50 Hz / 60 Hz, ≤65 VA
Screen Size: 5″ LCD Screen
Maximum Security Pressure: ≤8 kPa
Compliance: ≤4 ml / 100 Pa
Battery Operating Time: Approx. 4.5 h
