SKU: AL-6000S

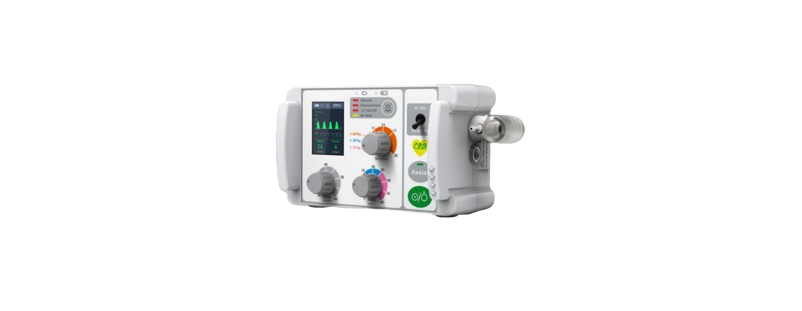

ALIS PRO Portable Ventilator | AL-6000S
The https://alispro.in/blogs/ventilator-for-hospital is an innovative product from Medical Equipment devices and is intended for providing effective breathing support for patients when they need to be transported, in ambulances, ICUs, at home and in hospitals. The Portable Ventilator comes with different ventilation modes, accurate oxygenation, monitoring and battery power. Due to its portable design, user-friendly touch screen interface, safety alarm systems and durable design, the Portable Ventilator can be used for adults, children and neonates. There is a reliable manufacturer of Portable Ventilators that provides premium quality respiratory care products.
Specifications
Feature
Technical Specification
Ventilation Modes
Controlled Ventilation (IPPV)
Assisted Ventilation (Assist)
Manual Ventilation Mode
Patient Category
Adult & Pediatric (≥ 15 kg)
Not suitable for neonates
Respiratory Frequency Range (Adjustable)
Infant (10–30 kg): 25–40 bpm
Child (30–60 kg): 15–25 bpm
Adult (60–110 kg): 8–15 bpm
Minute Volume Range (Adjustable)
Infant: 3 – 5 L/min
Child: 5 – 7 L/min
Adult: 7 – 13 L/min
Inspiratory / Expiratory Ratio
1 : 1.67 (fixed)
Maximum Airway Pressure (Pmax)
Mask Ventilation: up to 20 mbar
Intubation: up to 45 mbar
Operating Oxygen Pressure
2.7 – 6 bar
Oxygen Flow Capacity
≥ 70 L/min
Oxygen Concentration
Air Mix Mode: approx. 55% – 85%
No Air Mix Mode: 100% Oxygen
Trigger Sensitivity (Assist Mode)
5 L/min patient inspiratory flow
Power Supply
AC: 100–240 V (via adapter)
DC: 12 V (Ambulance / Helicopter supply)
Battery
Built-in Rechargeable Li-ion Battery (7.4 V)
Backup Time: up to 10 hours
Charging Time: ≥ 5 hours
Display
LED Display for airway pressure, peak & mean pressure, battery status, alarms
Alarm System
Visual + Audible + Voice Prompt Alarms
Packing:
Dimension : 45 cm x 35 cm x 30 cm
Weight : 6.5 kg
- Designed specifically for ambulance, emergency, and transport ventilation
- Compact, lightweight & portable for mobile critical care
- Three ventilation modes: Controlled, Assisted & Manual
- Air Mix / No Air Mix selection for flexible oxygen delivery
- High-precision pressure monitoring with real-time display
- Automatic self-test function on startup for safety assurance
- Built-in rechargeable battery ensures uninterrupted operation during transport
- Voice guidance & audio alerts for safer emergency handling
Technical Specification
Ventilation Modes
Controlled Ventilation (IPPV)
Assisted Ventilation (Assist)
Manual Ventilation Mode
Patient Category
Adult & Pediatric (≥ 15 kg)
Not suitable for neonates
Respiratory Frequency Range (Adjustable)
Infant (10–30 kg): 25–40 bpm
Child (30–60 kg): 15–25 bpm
Adult (60–110 kg): 8–15 bpm
Minute Volume Range (Adjustable)
Infant: 3 – 5 L/min
Child: 5 – 7 L/min
Adult: 7 – 13 L/min
Inspiratory / Expiratory Ratio
1 : 1.67 (fixed)
Maximum Airway Pressure (Pmax)
Mask Ventilation: up to 20 mbar
Intubation: up to 45 mbar
Operating Oxygen Pressure
2.7 – 6 bar
Oxygen Flow Capacity
≥ 70 L/min
Oxygen Concentration
Air Mix Mode: approx. 55% – 85%
No Air Mix Mode: 100% Oxygen
Trigger Sensitivity (Assist Mode)
5 L/min patient inspiratory flow
Power Supply
AC: 100–240 V (via adapter)
DC: 12 V (Ambulance / Helicopter supply)
Battery
Built-in Rechargeable Li-ion Battery (7.4 V)
Backup Time: up to 10 hours
Charging Time: ≥ 5 hours
Display
LED Display for airway pressure, peak & mean pressure, battery status, alarms
Alarm System
Visual + Audible + Voice Prompt Alarms
Packing:
Dimension : 45 cm x 35 cm x 30 cm
Weight : 6.5 kg
