SKU: LTV-1150

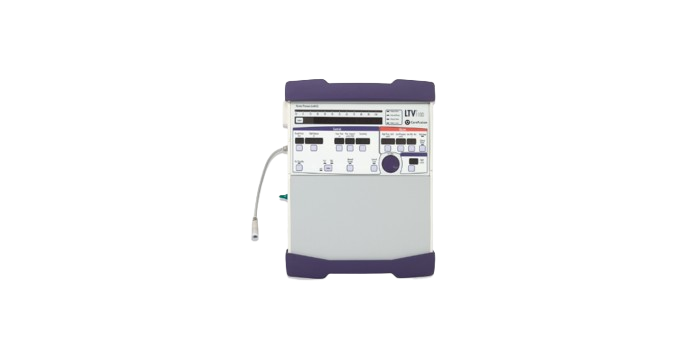

VYAIRE Portable Ventilator [Refurbished] | LTV-1150
Portable Ventilator [Refurbished] is a highly professional refurbished Medical Equipment item that ensures reliable respiratory care for patients in the hospital setting, ambulance, emergency room, ICU, and home care. The Portable Ventilator [Refurbished] undergoes careful inspection, testing, calibration, and refurbishing to guarantee efficient operation and adherence to the quality standards. Equipped with several ventilation modes, battery power, real-time monitoring of the patient’s condition, safety alarms, and a compact and lightweight design, it serves as an economic alternative that does not sacrifice functionality. A reliable source of the Portable Ventilator [Refurbished] guarantees the supply of high-quality refurbished respiratory care equipment.
Specifications
Feature
Technical Specification
Controls
Power On/Standby
Ventilation modes: Control, Assist/Control, SIMV/CPAP and NPPV
Breath types: VC, PS and Spontaneous
Breath rate: 0–80 BPM
Tidal volume: 50–2,000 mL
Inspiratory time: 0.3–9.9 sec
PS/spontaneous flow: 160 LPM
Pressure support: 1–60 cmH₂O
0 (PEEP compensated)
Flow sensitivity: Off, 1–9 LPM
PEEP/CPAP: 0–20 cmH₂O
Manual breath: 1× current settings
Control lock: Easy or hard unlock
Environmental Specifications
Operating temperature: 5–40°C (40–104°F)
Storage temperature: −20 to 60°C (−4 to 140°F)
Operating humidity: 15–95% relative
Storage humidity: 10–95% relative
Shock compliance: IEC 68-2-27, MIL-STD-810F
Vibration compliance: IEC 68-2-34 and 68-2-6, MIL-STD-810F
Variable Alarms
Apnea interval: 10–60 sec
High pressure limit: 5–100 cmH₂O
Low peak pressure: Off, 1–60 cmH₂O
Low minute volume: Off, 0.1–99 liters
High PEEP: Off, 3–20 cmH₂O above set PEEP
Low PEEP: Off, −3 to −20 cmH₂O below set PEEP
High rate: Off, 5–80 BPM
Alarm volume: 60–85 dBA
Monitors and Indicators
Peak inspiratory pressure: 0–120 cmH₂O
Mean airway pressure: 0–99 cmH₂O
PEEP: 0–99 cmH₂O
Breath rate: 0–250 BPM
Airway pressure display: −10 to 108 cmH₂O
Exhaled tidal volume: 0–4,000 mL
Exhaled minute volume: 0–99.9 liters
I:E ratio: 99:1 to 1:99
Calculated peak flow: 10–100 LPM
Packing:
Dimension : 13.5” x10.5”x 3.25”
Weight : 6.5 kg
- For patients 5kg body weight and up
- Presets to select the patient type, Infant, Pediatric or Adult patients
- Ventilator preset optimization using the intuitive LTV 1200 interface
- Illuminated active controls and alarms settings for easy identification of ventilation parameters.
Technical Specification
Controls
Power On/Standby
Ventilation modes: Control, Assist/Control, SIMV/CPAP and NPPV
Breath types: VC, PS and Spontaneous
Breath rate: 0–80 BPM
Tidal volume: 50–2,000 mL
Inspiratory time: 0.3–9.9 sec
PS/spontaneous flow: 160 LPM
Pressure support: 1–60 cmH₂O
0 (PEEP compensated)
Flow sensitivity: Off, 1–9 LPM
PEEP/CPAP: 0–20 cmH₂O
Manual breath: 1× current settings
Control lock: Easy or hard unlock
Environmental Specifications
Operating temperature: 5–40°C (40–104°F)
Storage temperature: −20 to 60°C (−4 to 140°F)
Operating humidity: 15–95% relative
Storage humidity: 10–95% relative
Shock compliance: IEC 68-2-27, MIL-STD-810F
Vibration compliance: IEC 68-2-34 and 68-2-6, MIL-STD-810F
Variable Alarms
Apnea interval: 10–60 sec
High pressure limit: 5–100 cmH₂O
Low peak pressure: Off, 1–60 cmH₂O
Low minute volume: Off, 0.1–99 liters
High PEEP: Off, 3–20 cmH₂O above set PEEP
Low PEEP: Off, −3 to −20 cmH₂O below set PEEP
High rate: Off, 5–80 BPM
Alarm volume: 60–85 dBA
Monitors and Indicators
Peak inspiratory pressure: 0–120 cmH₂O
Mean airway pressure: 0–99 cmH₂O
PEEP: 0–99 cmH₂O
Breath rate: 0–250 BPM
Airway pressure display: −10 to 108 cmH₂O
Exhaled tidal volume: 0–4,000 mL
Exhaled minute volume: 0–99.9 liters
I:E ratio: 99:1 to 1:99
Calculated peak flow: 10–100 LPM
Packing:
Dimension : 13.5” x10.5”x 3.25”
Weight : 6.5 kg
