![VYAIRE Portable Ventilator [Refurbished] | LTV-1200](/uploads/products/f4ac82cec418c60591ae.png)
SKU: LTV-1200

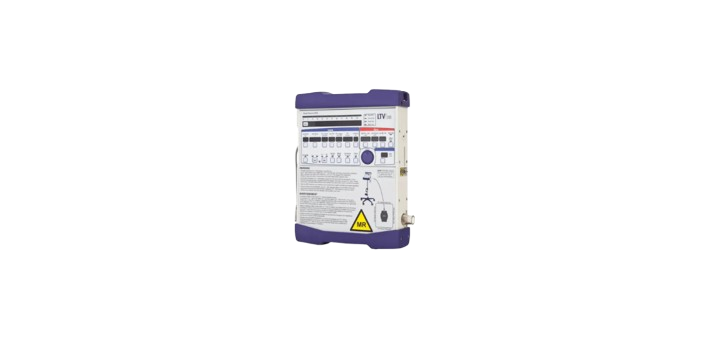

VYAIRE Portable Ventilator [Refurbished] | LTV-1200
Refurbished Portable Ventilator is a Medical Equipment machine that has been refurbished in order to offer reliable ventilation to the patient in various locations such as hospitals, ambulances, Emergency Departments, ICUs, and home health care services. The Refurbished Portable Ventilator is carefully checked, tested, calibrated, and refurbished to guarantee the reliable performance of the machine. Equipped with several ventilation modes, battery power supply, real-time monitoring of the patient, built-in alarm systems, and portable design, this is a cost-effective machine. Reliable Refurbished Portable Ventilator Supplier is a company that supplies high-quality refurbished ventilation machines.
Specifications
Feature
Technical Specification
Variable Alarms
Apnea interval: 10 to 60 sec
High pressure limit: 5 to 100 cmH₂O
Low peak pressure: Off, 1 to 60 cmH₂O
Low minute volume: Off, 0.1 to 99 L
High PEEP: Off, 3 to 20 cmH₂O above set PEEP
Low PEEP: Off, −3 to −20 cmH₂O below set PEEP
High rate: Off, 5 to 80 BPM
Alarm volume: 60 to 85 dBA
Controls
Power - On / Standby
Ventilation Modes :
Control
Assist/Control
SIMV / CPAP
NPPV
Breath Types - VC, PC, PS and spontaneous
Breath Rate - 0 to 80 BPM
Tidal Volume - 50 to 2,000 mL
Inspiratory Time - 0.3 to 9.9 sec
PC / PS / Spont. Flow - 160 LPM
Pressure Control - 1 to 99 cmH₂O
Pressure Support - 1 to 60 cmH₂O
Sensitivity - Off, 1 to 9 LPM
O₂ % - 21 to 100 %
O₂ Flush - 1 to 3 min
Low Pressure O₂ - On / Off
PEEP / CPAP - 0 to 20 cmH₂O
Inspiratory / Expiratory Hold - 6 sec max
Manual Breath - 1× current settings
Control Lock - Easy or hard unlock options
Monitors and Indicators
Peak inspiratory pressure: 0 to 120 cmH₂O
Mean airway pressure: 0 to 99 cmH₂O
PEEP: 0 to 99 cmH₂O
Breath rate: 0 to 250 BPM
Airway pressure display: −10 to 108 cmH₂O
Exhaled tidal volume: 0 to 4,000 mL
Exhaled minute volume: 0 to 99.9 L
I:E ratio: 99:1 to 1:99
Calculated peak flow: 10 to 100 LPM
AutoPEEP: 0 to 100 cmH₂O
Static compliance: 1 to 999 mL/cmH₂O
Patient effort: Green LED
Fixed Alarms
Disconnect / sense
External power low and lost
High and low O₂ inlet pressure
Internal battery low and empty
Ventilator inoperative
Pneumatic Specifications
High pressure O₂ source: 40 to 80 PSIG (2.8 to 5.5 bar)
Low pressure O₂ source: <80 LPM, <10 PSIG
Power Indicators
External power: Green and amber LEDs
Battery charge status: Green, amber and red LEDs
Battery level: Green, amber and red LEDs
Power Specifications
Ventilator input: 11 to 15 VDC
AC adapter input: 100 to 250 VAC
Frequency: 50 to 60 Hz
Environmental Specifications
Operating temperature: 5 to 40°C (40 to 104°F)
Storage temperature: −20 to 60°C (−4 to 140°F)
Operating humidity: 15 to 95% relative
Storage humidity: 10 to 95% relative
Shock compliance: MIL-STD-810F
Vibration compliance: MIL-STD-810F
Packing:
Dimension : 13.5” x10.5”x 3.25”
Weight : 6.5 kg
- Portable and lightweight ventilator for hospital, transport, and emergency use
- Suitable for infant, pediatric, and adult patients
- Supports both invasive and non-invasive ventilation
- Multiple ventilation modes for flexible patient management
Technical Specification
Variable Alarms
Apnea interval: 10 to 60 sec
High pressure limit: 5 to 100 cmH₂O
Low peak pressure: Off, 1 to 60 cmH₂O
Low minute volume: Off, 0.1 to 99 L
High PEEP: Off, 3 to 20 cmH₂O above set PEEP
Low PEEP: Off, −3 to −20 cmH₂O below set PEEP
High rate: Off, 5 to 80 BPM
Alarm volume: 60 to 85 dBA
Controls
Power - On / Standby
Ventilation Modes :
Control
Assist/Control
SIMV / CPAP
NPPV
Breath Types - VC, PC, PS and spontaneous
Breath Rate - 0 to 80 BPM
Tidal Volume - 50 to 2,000 mL
Inspiratory Time - 0.3 to 9.9 sec
PC / PS / Spont. Flow - 160 LPM
Pressure Control - 1 to 99 cmH₂O
Pressure Support - 1 to 60 cmH₂O
Sensitivity - Off, 1 to 9 LPM
O₂ % - 21 to 100 %
O₂ Flush - 1 to 3 min
Low Pressure O₂ - On / Off
PEEP / CPAP - 0 to 20 cmH₂O
Inspiratory / Expiratory Hold - 6 sec max
Manual Breath - 1× current settings
Control Lock - Easy or hard unlock options
Monitors and Indicators
Peak inspiratory pressure: 0 to 120 cmH₂O
Mean airway pressure: 0 to 99 cmH₂O
PEEP: 0 to 99 cmH₂O
Breath rate: 0 to 250 BPM
Airway pressure display: −10 to 108 cmH₂O
Exhaled tidal volume: 0 to 4,000 mL
Exhaled minute volume: 0 to 99.9 L
I:E ratio: 99:1 to 1:99
Calculated peak flow: 10 to 100 LPM
AutoPEEP: 0 to 100 cmH₂O
Static compliance: 1 to 999 mL/cmH₂O
Patient effort: Green LED
Fixed Alarms
Disconnect / sense
External power low and lost
High and low O₂ inlet pressure
Internal battery low and empty
Ventilator inoperative
Pneumatic Specifications
High pressure O₂ source: 40 to 80 PSIG (2.8 to 5.5 bar)
Low pressure O₂ source: <80 LPM, <10 PSIG
Power Indicators
External power: Green and amber LEDs
Battery charge status: Green, amber and red LEDs
Battery level: Green, amber and red LEDs
Power Specifications
Ventilator input: 11 to 15 VDC
AC adapter input: 100 to 250 VAC
Frequency: 50 to 60 Hz
Environmental Specifications
Operating temperature: 5 to 40°C (40 to 104°F)
Storage temperature: −20 to 60°C (−4 to 140°F)
Operating humidity: 15 to 95% relative
Storage humidity: 10 to 95% relative
Shock compliance: MIL-STD-810F
Vibration compliance: MIL-STD-810F
Packing:
Dimension : 13.5” x10.5”x 3.25”
Weight : 6.5 kg
