SKU: LTV-950

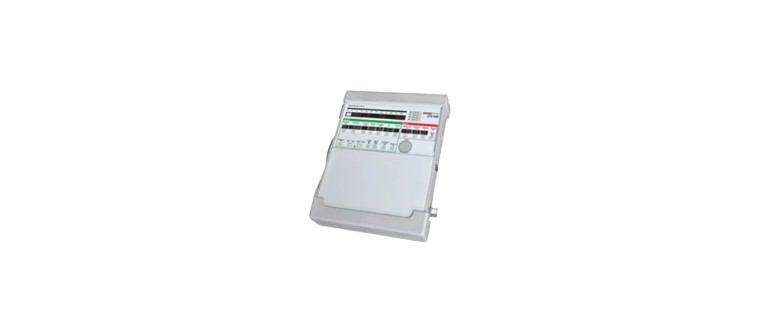

VYAIRE Portable Ventilator [Refurbished] | LTV-950
[Refurbished] Portable Ventilator is a quality refurbished piece of Medical Equipment that will reliably help you with respiratory management for your patients in hospitals, ambulances, emergency departments, intensive care units, and other places where such medical equipment can be used. The [Refurbished] Portable Ventilator is inspected, tested, calibrated, and refurbished in order to give you the best quality refurbished product. With various ventilating modes, battery power, monitoring the condition of the patient in real time, safety alarms, and small size, this is a cheap but efficient piece of equipment. You can buy a high-quality refurbished portable ventilator from a quality supplier of [Refurbished] Portable Ventilators.
Specifications
Feature
Technical Specification
Controls
Power: On / Standby
Ventilation Modes: Control, Assist/Control, SIMV, CPAP, NPPV
Breath Types: Volume Control, Pressure Control, Pressure Support, Spontaneous
Breath Rate: 0 – 80 breaths per minute
Tidal Volume: 50 – 2000 ml
Inspiratory Time: 0.3 – 9.9 seconds (100 lpm)
PC/PS/Spontaneous Flow: 160 lpm
Pressure Control: Off, 1 – 99 cmH₂O
Pressure Support: Off, 1 – 60 cmH₂O
Sensitivity: 0.1 lpm (inhalation)
PEEP/CPAP: 0 – 20 cmH₂O
Control Breath: Easy or Hard unlock methods 1 x current settings
Variable Alarms
Apnea Interval: 10 – 60 seconds
High Pressure Limit: 5 – 100 cmH₂O
Low Peak Pressure: Off, 1 – 60 cmH₂O
Low Minute Volume: Off, 0 – 99 liters
Alarm Volume: 60 – 85 dBA at 1 meter
Alarm Silence/Reset: 60 seconds
Ventilator Inoperative: Red LED, audible alarm
High Rate Alarm: Off, 5 – 80 bpm
High PEEP Alarm: Off, 3 – 40 cmH₂O
Fixed Alarms
Disconnect/Sense Line
Low & Lost External Power
Low & Empty Internal Battery
High & Low Oxygen Inlet Pressure
Monitors and Indicators
Peak Inspiratory Pressure: 0 – 120 cmH₂O
Mean Airway Pressure: 0 – 99 cmH₂O
PEEP: 0 – 99 cmH₂O
Total Breath Rate: 0 – 250 bpm
Airway Pressure Display: -10 – 108 cmH₂O
Exhaled Tidal Volume: 0 – 4000 ml
Total Minute Volume: 0 – 99.9 liters
I:E Ratio: 99:1 – 1:99
Calculated Peak Flow: 10 – 100 lpm
Patient Effort: Green LED
Power Specifications : 11 – 15 VDC, 90 – 250 VAC, 47 – 63 Hz
Pneumatic Specifications: Low Pressure O₂ Source: <80 lpm, <10 PSIG
Environmental Specifications
Operating Temperature: 5° – 40°C (40° – 104°F)
Storage Temperature: -20° – 60°C (-4° – 140°F)
Operating Humidity: 15 – 95% relative
Storage Humidity: 10 – 95% relative
Shock Compliance: MIL-STD-810E
Vibration Compliance: MIL-STD-810E
Packing:
Dimension : 81 x 23 x 30 cm
Weight : 6.1 kg
- Apnea Back-up Ventilation
- Pressure Control and Pressure Support Variable Rise Time
- Pressure Control and Pressure Support Variable Flow Termination
- Leak Compensation
Technical Specification
Controls
Power: On / Standby
Ventilation Modes: Control, Assist/Control, SIMV, CPAP, NPPV
Breath Types: Volume Control, Pressure Control, Pressure Support, Spontaneous
Breath Rate: 0 – 80 breaths per minute
Tidal Volume: 50 – 2000 ml
Inspiratory Time: 0.3 – 9.9 seconds (100 lpm)
PC/PS/Spontaneous Flow: 160 lpm
Pressure Control: Off, 1 – 99 cmH₂O
Pressure Support: Off, 1 – 60 cmH₂O
Sensitivity: 0.1 lpm (inhalation)
PEEP/CPAP: 0 – 20 cmH₂O
Control Breath: Easy or Hard unlock methods 1 x current settings
Variable Alarms
Apnea Interval: 10 – 60 seconds
High Pressure Limit: 5 – 100 cmH₂O
Low Peak Pressure: Off, 1 – 60 cmH₂O
Low Minute Volume: Off, 0 – 99 liters
Alarm Volume: 60 – 85 dBA at 1 meter
Alarm Silence/Reset: 60 seconds
Ventilator Inoperative: Red LED, audible alarm
High Rate Alarm: Off, 5 – 80 bpm
High PEEP Alarm: Off, 3 – 40 cmH₂O
Fixed Alarms
Disconnect/Sense Line
Low & Lost External Power
Low & Empty Internal Battery
High & Low Oxygen Inlet Pressure
Monitors and Indicators
Peak Inspiratory Pressure: 0 – 120 cmH₂O
Mean Airway Pressure: 0 – 99 cmH₂O
PEEP: 0 – 99 cmH₂O
Total Breath Rate: 0 – 250 bpm
Airway Pressure Display: -10 – 108 cmH₂O
Exhaled Tidal Volume: 0 – 4000 ml
Total Minute Volume: 0 – 99.9 liters
I:E Ratio: 99:1 – 1:99
Calculated Peak Flow: 10 – 100 lpm
Patient Effort: Green LED
Power Specifications : 11 – 15 VDC, 90 – 250 VAC, 47 – 63 Hz
Pneumatic Specifications: Low Pressure O₂ Source: <80 lpm, <10 PSIG
Environmental Specifications
Operating Temperature: 5° – 40°C (40° – 104°F)
Storage Temperature: -20° – 60°C (-4° – 140°F)
Operating Humidity: 15 – 95% relative
Storage Humidity: 10 – 95% relative
Shock Compliance: MIL-STD-810E
Vibration Compliance: MIL-STD-810E
Packing:
Dimension : 81 x 23 x 30 cm
Weight : 6.1 kg
