SKU: VG70

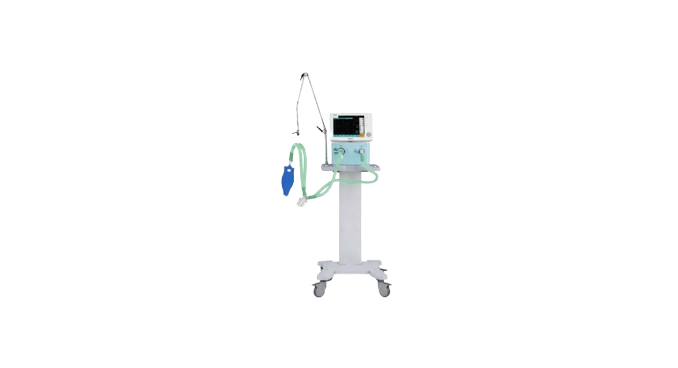

AEONMED Ventilator | VG70
The Ventilator is an advanced Medical Equipment product that can be used in hospitals and ICUs to give patients breathing support. It is intended to save lives of patients who are suffering from breathing problems or respiratory failure in hospitals, ICUs, emergency departments, operating theatres, and critical care units. The Ventilator offers accurate oxygen administration via various modes of ventilation to manage the breathing process of adult, pediatric, and neonatal patients. Featuring advanced touch screen, intelligent monitoring system, safety alarms, waveforms analysis, and control options, it guarantees high efficiency. The Ventilator Supplier provides quality equipment according to international healthcare standards.
Specifications
Feature
Technical Specification
Ventilation Modes
VCV (A/C), PCV (A/C), STANDBY
SIMV (VCV+PSV), SIMV (PRVC+PSV)
SPONT/CPAP+PSV
NIV/CPAP, NIV-T, NIV-ST
Enhancements
Apnea ventilation
Pressure and Flow trigger
Automatic Tube Compensation (ATC)
Smart suction
Manual breath
Insp/Exphold
Screen freeze
Nebulization
Lung recruitment
Screen
12.1″ TFT color touch screen
Parameters
Tidal volume (VT): 20–2000 ml
Respiratory rate (RR): 1 to 80 bpm
Inspiratory time (Ti): 0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
Inspiratory flow (Flow): 0 to 100 L/min (pediatric), 0 to 180 L/min (adult)
Inspiratory pressure (Pinsp): 5 to 70 mbar (or cmH₂O)
Inspiratory pressure limit (Pmax): 80 mbar (or cmH₂O)
PEEP: 0 to 35 mbar (or cmH₂O)
T slope: 0 to 2 s
O₂ concentration (FiO₂): 21 to 100 Vol%
Trigger sensitivity:
0.5 to 20 L/min (flow trigger)
−20 to 0 mbar (or cmH₂O) (pressure trigger)
I:E ratio: 1:10 to 4:1
Apnea alarm time: 10–60 seconds
Monitoring
Pressure values: Pplat, Ppeak, Pmean, Pmin, PEEP
Volume/Flow values: VTi, VTe, MV, MVe, MVspont
Time values: ftotal, fspont, I:E
Inspiratory O₂ concentration (FiO₂), End-expiratory CO₂ concentration (etCO₂)
Compliance (dynamic & static), Resistance (R), MVeak, RSBI, WOB, I:E, Vdaw, PEEPi
Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
Alarms
Expiratory minute volume (MV) High/Low
Airway pressure (Paw) High/Low
VTe Low
PEEP High/Low
Insp. O₂ concentration (FiO₂) High/Low
End-expiratory CO₂ concentration (etCO₂) High/Low
fspont High
Apnea alarm
Disconnection
Flow sensor error
Gas supply
Electrical supply & battery failure
Exhalation obstruction
Apnea backup for low frequency alarm
Ventilator Packing:
Dimension : 750 mm × 750 mm × 750 mm
Weight : 18 kg
Trolley Packing:
Dimension : 1000 mm × 800 mm × 300 mm
Weight : 20 kg
- Advanced ventilator suitable for ICU, critical care, and emergency use
- Supports invasive and non-invasive ventilation
- Wide range of ventilation modes for diverse clinical needs
- Assist/Control, SIMV, CPAP, and spontaneous breathing support
- Compatible with adult and pediatric patients
Technical Specification
Ventilation Modes
VCV (A/C), PCV (A/C), STANDBY
SIMV (VCV+PSV), SIMV (PRVC+PSV)
SPONT/CPAP+PSV
NIV/CPAP, NIV-T, NIV-ST
Enhancements
Apnea ventilation
Pressure and Flow trigger
Automatic Tube Compensation (ATC)
Smart suction
Manual breath
Insp/Exphold
Screen freeze
Nebulization
Lung recruitment
Screen
12.1″ TFT color touch screen
Parameters
Tidal volume (VT): 20–2000 ml
Respiratory rate (RR): 1 to 80 bpm
Inspiratory time (Ti): 0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
Inspiratory flow (Flow): 0 to 100 L/min (pediatric), 0 to 180 L/min (adult)
Inspiratory pressure (Pinsp): 5 to 70 mbar (or cmH₂O)
Inspiratory pressure limit (Pmax): 80 mbar (or cmH₂O)
PEEP: 0 to 35 mbar (or cmH₂O)
T slope: 0 to 2 s
O₂ concentration (FiO₂): 21 to 100 Vol%
Trigger sensitivity:
0.5 to 20 L/min (flow trigger)
−20 to 0 mbar (or cmH₂O) (pressure trigger)
I:E ratio: 1:10 to 4:1
Apnea alarm time: 10–60 seconds
Monitoring
Pressure values: Pplat, Ppeak, Pmean, Pmin, PEEP
Volume/Flow values: VTi, VTe, MV, MVe, MVspont
Time values: ftotal, fspont, I:E
Inspiratory O₂ concentration (FiO₂), End-expiratory CO₂ concentration (etCO₂)
Compliance (dynamic & static), Resistance (R), MVeak, RSBI, WOB, I:E, Vdaw, PEEPi
Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
Alarms
Expiratory minute volume (MV) High/Low
Airway pressure (Paw) High/Low
VTe Low
PEEP High/Low
Insp. O₂ concentration (FiO₂) High/Low
End-expiratory CO₂ concentration (etCO₂) High/Low
fspont High
Apnea alarm
Disconnection
Flow sensor error
Gas supply
Electrical supply & battery failure
Exhalation obstruction
Apnea backup for low frequency alarm
Ventilator Packing:
Dimension : 750 mm × 750 mm × 750 mm
Weight : 18 kg
Trolley Packing:
Dimension : 1000 mm × 800 mm × 300 mm
Weight : 20 kg
