SKU: AL-DD48

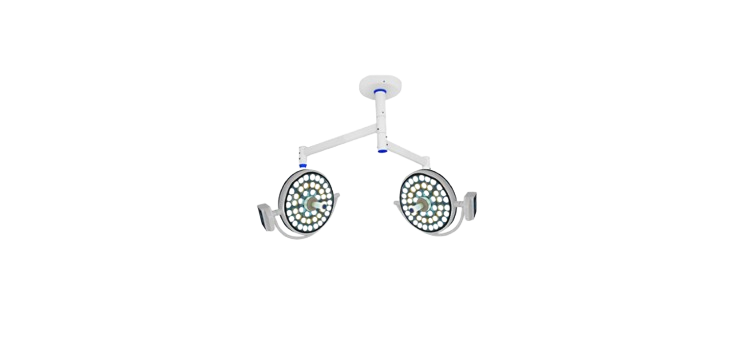

ALIS PRO 48+48 Led Double Dome OT Light with Ceiling Structure | AL-DD48
48 + 48 LED Double Dome Light with Ceiling Structure is a very efficient Medical Equipment that is used to provide clear and shadowless lighting during surgeries at hospitals, operating theatres, and other healthcare centers. 48 + 48 LED Double Dome Light with Ceiling Structure is a light with two domes, each of which has 48 highly-efficient LEDs; it also offers adjustable intensity of light, good color rendering, low heat dissipation, and has ceiling mounting structure for added convenience and stability. A trusted 48 + 48 LED Double Dome Light with Ceiling Structure Manufacturer offers you premium quality operation theatres lighting systems according to international healthcare standards.
Specifications
Features
Technical Specifications
Dimensions (Approx.)
Weight (Approx.)
Standard Accessories
- Premium double dome surgical LED OT light with HD optical lens
- 48 + 48 high-intensity LEDs with large HD lens design
- Combination of Cool White & Warm White LEDs for excellent tissue differentiation
- Very high illumination with deep cavity visibility
- Focus adjustable via push-button sterilizable handle
- Digital controller panel box on each dome
- Brightness control function
- Memory function for saving preferred settings
- Endo mode / Endoscopic function
- Remote control operation
- Low heat radiation for surgeon comfort
- Long LED life > 50,000 hours
- Energy-efficient, maintenance-free premium LED technology
Technical Specifications
- Light Source: LED with HD Lens (Big)
- LED Configuration: 48 LEDs + 48 LEDs
- Light Color: Cool White & Warm White
- Illumination Intensity:
- 200,000 Lux + 200,000 Lux (±10%)
- Color Temperature: 3800 – 4800 K
- Color Rendering Index (CRI): ≥ 95 Ra
- Focus Adjustment: Yes (Push Button Handle)
- Brightness Control: Digital
- Endo Mode: Yes
- Memory Function: Yes
- Controller: Digital controller panel box
- Remote Control: Yes
- Power Supply: SMPS (Switch Mode Power Supply)
- Power Source: Electricity
- Input Power: 220V / 50Hz AC
- Heat Emission: Minimal
- Mounting Type: Ceiling mounted
- Structure Material: Stainless Steel (SS)
Dimensions (Approx.)
- Dome Diameter: 700 mm
- Spot Diameter: 200 – 250 mm
- Effective Light Diameter: 150 mm
Weight (Approx.)
- Single Dome Weight: ~22–25 kg
- Double Dome Assembly: ~48–52 kg
- Ceiling Arms & Structure: ~30–35 kg
- Total Installed Weight: ~80–90 kg (approx.)
Standard Accessories
- Digital controller panel (pre-installed)
- Remote control
- SMPS power supply unit
- SS ceiling suspension arms
- Ceiling mounting plate
- Sterilizable push-button handle
- Installation hardware kit
