SKU: AL-DD76

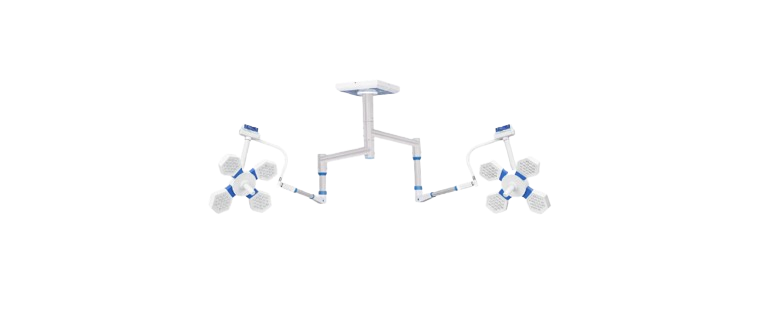

ALIS PRO 76+76 Led Double Dome Light with Ceiling Structure | AL-DD76
76+76 LED Double Dome Light with Ceiling Structure is an exclusive range of Medical Equipment that offers extremely bright, shadowless lighting for highly complicated surgical operations in hospitals, operating theaters, and other healthcare facilities. The 76+76 LED Double Dome Light with Ceiling Structure is a unique lighting product having two domes with 76 superior LEDs in each, along with adjustable light, superior color rendering, minimum heat output, and a ceiling structure. It is energy-saving and provides continuous lighting, minimum eye strain, and increased accuracy in surgery. We offer reliable 76+76 LED Double Dome Light with Ceiling Structure Manufacturers who provide quality lighting solutions in operating theaters.
Specifications
Features
Technical Specifications
Dimensions (Approx.)
Weight (Approx.)
Standard Accessories
- Dual dome configuration for shadow-free illumination
- Combination of Cool White & Warm White LEDs
- High illumination intensity suitable for major surgeries
- Adjustable focus for precise light field control
- Digital controller panel box for easy operation
- Brightness control function
- Memory function to retain last settings
- Endo mode/function for endoscopic procedures
- Remote control operation
- Low heat emission for surgeon comfort
- Energy-efficient SMPS power supply
- Long LED life, reducing maintenance cost
- Ceiling-mounted stainless steel structure
Technical Specifications
- LED Configuration: 76 LEDs + 76 LEDs (Dual Dome)
- Light Color: Cool White & Warm White
- Illumination Intensity: 130,000 + 130,000 Lux (±10%)
- Focus: Adjustable
- Control System: Digital Controller Panel Box
- Brightness Control: Yes
- Memory Function: Yes
- Endo Mode: Yes
- Remote Control: Yes
- Power Supply Type: SMPS
- Power Source: Electricity
- Color Temperature: 3500 – 6200 K
- Color Rendering Index (CRI): ≥ 96
- LED Life: > 50,000 Hours
- Mounting Type: Ceiling Mounted
- Structure Material: Stainless Steel
- Power Requirement: 220V / 50Hz AC
Dimensions (Approx.)
- Dome Diameter: 580 mm
- Light Field Diameter: 150 mm
- Diameter of Light: 150 mm
Weight (Approx.)
- Single Dome Weight: 18–20 kg
- Dual Dome Complete System (with arms & ceiling mount): 55–65 kg
Standard Accessories
- Digital controller panel (pre-installed)
- Remote control
- SMPS power supply unit
- Ceiling mounting plate & SS suspension arms
- Sterilizable handle (standard)
- Installation bolts & hardware kit
