SKU: AL-DD84

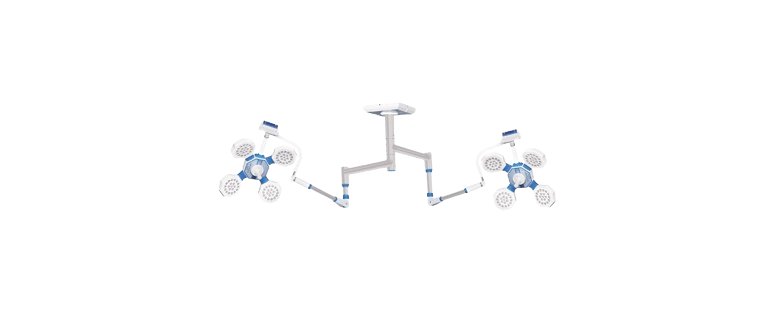

ALIS PRO 84+84 Led Double Dome Light with Ceiling Structure | AL-DD84
Medical Equipment 84+84 LED Double Dome Light with Ceiling Structure is the premium option that ensures the most brilliant shadow free light for surgical operations in hospitals, operating theatres and other advanced health care institutions. Medical Equipment 84+84 LED Double Dome Light with Ceiling Structure consists of two domes, each of them has 84 high-end LED lights, adjustable light intensity, improved color rendering, minimal heat emission and ceiling structure. This product guarantees the uniform light distribution, better visibility of the operation process and minimization of eye strain. Reliable 84+84 LED Double Dome Light with Ceiling Structure Manufacturer provides high-quality lighting system for operating theatres in accordance with international health care regulations.
Specifications
Features
Technical Specifications
Dimensions (Approx.)
Weight (Approx.)
Standard Accessories
- Double dome surgical LED light with 84 + 84 high-intensity LEDs
- Combination of Cool White & Warm White LEDs for true tissue color visibility
- High illumination with excellent shadow reduction
- Focus adjustable light field
- Digital controller panel box on each dome
- Brightness control function
- Memory function to store preferred settings
- Endo mode / Endoscopic function
- Remote control operation
- Low heat generation for surgeon comfort
- LED life > 50,000 hours
- Energy-efficient, maintenance-free LED technology
Technical Specifications
- Light Source: LED
- LED Configuration: 84 LEDs + 84 LEDs
- Light Color: Cool White & Warm White
- Illumination Intensity:
- 140,000 Lux + 140,000 Lux (±10%)
- Color Temperature: 3500 – 6200 K
- Color Rendering Index (CRI): ≥ 96
- Focus Adjustment: Yes
- Brightness Control: Digital
- Endo Mode: Yes
- Memory Function: Yes
- Controller: Digital controller panel box
- Remote Control: Yes
- Power Supply: SMPS (Switch Mode Power Supply)
- Power Source: Electricity
- Input Power: 220V / 50Hz AC
- Heat Emission: Minimal
- Mounting Type: Ceiling mounted
- Structure Material: Stainless Steel (SS) ceiling structure
Dimensions (Approx.)
- Dome Diameter: 580 mm
- Light Field Size: 150 mm
- Effective Light Diameter: 150 mm
Weight (Approx.)
- Single Dome Weight: ~20–22 kg
- Double Dome Assembly: ~45–48 kg
- Ceiling Arms & Structure: ~28–32 kg
- Total Installed Weight: ~75–80 kg (approx.)
Standard Accessories
- Digital controller panel (pre-installed)
- Remote control
- SMPS power supply unit
- SS ceiling suspension arms
- Ceiling mounting plate
- Sterilizable handle
- Installation hardware kit
